Inheritance diagram for FEDD::AssembleFENonLinLaplace< SC, LO, GO, NO >:

Public Types
typedef Matrix< SC, LO, GO, NO >	Matrix_Type

typedef Teuchos::RCP< Matrix_Type >	MatrixPtr_Type

typedef SmallMatrix< SC >	SmallMatrix_Type

typedef Teuchos::RCP< SmallMatrix_Type >	SmallMatrixPtr_Type

typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef AssembleFE< SC, LO, GO, NO >	AssembleFE_Type

Public Types inherited from FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >
typedef SmallMatrix< default_sc >	SmallMatrix_Type

typedef Teuchos::RCP< SmallMatrix_Type >	SmallMatrixPtr_Type

typedef AssembleFE< default_sc, default_lo, default_go, default_no >	AssembleFE_Type

Public Member Functions
void	assembleJacobian () override
	Assemble the element Jacobian matrix.

void	assembleRHS () override
	Assemble the element right hand side vector.

void	assembleJacobianBlock (LO i) override
	Assemble the element Jacobian matrix.

Public Member Functions inherited from FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >
SmallMatrixPtr_Type	getJacobian ()
	Get the currently assembled element Jacobian matrix.

SmallMatrixPtr_Type	getJacobianBlock (default_lo i)
	Get the currently assembled element Jacobian matrix.

vec_dbl_ptr_Type	getRHS ()
	Get the currently assembled right hand side vector.

virtual void	checkParameters ()
	Check the input parameters from the constructor and the ParameterList for completeness and consistency.

virtual void	updateParams (ParameterListPtr_Type params)
	Set or update the parameters read from the ParameterList.

virtual void	updateParameter (std::string type, double value)
	Update the parameter read from the ParameterList.

virtual void	advanceInTime (double dt)
	This function is called every time the FEDDLib proceeds from one to the next time step. The size of the time step will always be provided as input.

double	getTimeStep ()
	Get the time state of the object.

void	advanceNewtonStep ()
	This function is called every time the FEDDLib proceeds from one to the next newton step. The size of the time step will always be provided as input.

int	getNewtonStep ()
	Get the time state of the object.

void	updateSolution (vec_dbl_Type solution)
	Update the solution vector.

vec_dbl_ptr_Type	getSolution ()
	Get the current local solution vector.

void	preProcessing ()
	This function is called in the beginning of each Newton step before actually assmblying anything.

void	postProcessing ()
	This function is called at the end of each Newton step after updating the solution vector.

int	getDim ()
	Get the spatial dimension. (Typically 2 or 3)

vec2D_dbl_Type	getNodesRefConfig ()
	Return the coordnates of the finite element nodes.

void	addRHSFunc (RhsFunc_Type rhsFunc)

tuple_sd_vec_ptr_Type	getTupleElement ()
	Return vector of tupled with element based values. First column per tuple string with description, second column with corresponding value.

double	getTimeIncrement ()
	Returns the time increment. Required by AceGen implementation.

void	setGlobalElementID (default_go goID)

default_go	getGlobalElementID ()

virtual void	computeLocalconstOutputField ()
	E.g. In case of non-newtonian fluids the viscosity is not constant - Compute the viscosity for an element depending on the known velocity solution.

vec_dbl_Type	getLocalconstOutputField ()
	Obtain value of resulting postprocessing field at nodes/ inside an element.

Protected Member Functions
	AssembleFENonLinLaplace (int flag, vec2D_dbl_Type nodesRefConfig, ParameterListPtr_Type parameters, tuple_disk_vec_ptr_Type tuple)
	Constructor for AssembleFENonLinLaplace.

Protected Member Functions inherited from FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >
	AssembleFE (int flag, vec2D_dbl_Type nodesRefConfig, ParameterListPtr_Type parameters, tuple_disk_vec_ptr_Type tuple)
	Constructor.

Friends
class	AssembleFEFactory< SC, LO, GO, NO >

Additional Inherited Members
Protected Attributes inherited from FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >
SmallMatrixPtr_Type	jacobian_

SmallMatrixPtr_Type	jacobianBlock_

vec_dbl_ptr_Type	rhsVec_

RhsFunc_Type	rhsFunc_

int	dim_

tuple_disk_vec_ptr_Type	diskTuple_

tuple_sd_vec_ptr_Type	elementIntormation_

vec2D_dbl_Type	nodesRefConfig_

bool	timeProblem_

int	flag_

double	timeStep_

int	newtonStep_

ParameterListPtr_Type	paramsMaterial_

ParameterListPtr_Type	params_

vec_dbl_ptr_Type	solution_

double	timeIncrement_

default_go	globalElementID_

vec_dbl_Type	constOutputField_

Constructor & Destructor Documentation

◆ AssembleFENonLinLaplace()

template<class SC, class LO, class GO, class NO>

FEDD::AssembleFENonLinLaplace< SC, LO, GO, NO >::AssembleFENonLinLaplace	(	int	flag,
		vec2D_dbl_Type	nodesRefConfig,
		ParameterListPtr_Type	params,
		tuple_disk_vec_ptr_Type	tuple )

protected

Constructor for AssembleFENonLinLaplace.

Parameters

[in]	flag	Flag of element
[in]	nodesRefConfig	Nodes of element in reference configuration
[in]	params	Parameterlist for current problem
[in]	tuple	Information on the discretization

Here is the call graph for this function:

Member Function Documentation

◆ assembleJacobian()

template<class SC, class LO, class GO, class NO>

void FEDD::AssembleFENonLinLaplace< SC, LO, GO, NO >::assembleJacobian ( )

overridevirtual

Assemble the element Jacobian matrix.

Assemble Jacobian as per Gateaux derivative of the laplacian.

Returns: the element Jacobian matrix

Parameters

[in] &elementMatrix

Implements FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >.

◆ assembleJacobianBlock()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

void FEDD::AssembleFENonLinLaplace< SC, LO, GO, NO >::assembleJacobianBlock ( LO i )

inlineoverridevirtual

Assemble the element Jacobian matrix.

Parameters

[in] block ID i

Implements FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >.

◆ assembleRHS()

template<class SC, class LO, class GO, class NO>

void FEDD::AssembleFENonLinLaplace< SC, LO, GO, NO >::assembleRHS ( )

overridevirtual

Assemble the element right hand side vector.

Assembly function for the residual of the nonlinear Laplacian \int fv - (1+u_0^2)\nabla u_0\nabla v dx.

Returns: the element right hand side vector

Parameters

[in] &elementVector

Implements FEDD::AssembleFE< default_sc, default_lo, default_go, default_no >.

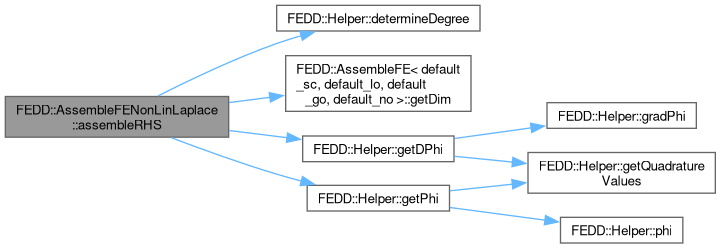

Here is the call graph for this function:

The documentation for this class was generated from the following files:

feddlib/core/AceFemAssembly/specific/AssembleFENonLinLaplace_decl.hpp
feddlib/core/AceFemAssembly/specific/AssembleFENonLinLaplace_def.hpp
