This class is responsible for setting the boundary conditions into the system and rhs. More...

#include <BCBuilder_decl.hpp>

Public Types
typedef unsigned	UN

typedef Teuchos::RCP< Domain< SC, LO, GO, NO > >	DomainPtr_Type

typedef Matrix< SC, LO, GO, NO >	Matrix_Type

typedef Teuchos::RCP< Matrix_Type >	MatrixPtr_Type

typedef BlockMatrix< SC, LO, GO, NO >	BlockMatrix_Type

typedef Teuchos::RCP< BlockMatrix_Type >	BlockMatrixPtr_Type

typedef Matrix_Type::Map_Type	Map_Type

typedef Matrix_Type::MapPtr_Type	MapPtr_Type

typedef Matrix_Type::MapConstPtr_Type	MapConstPtr_Type

typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef Teuchos::RCP< const MultiVector_Type >	MultiVectorConstPtr_Type

typedef BlockMultiVector< SC, LO, GO, NO >	BlockMultiVector_Type

typedef Teuchos::RCP< BlockMultiVector_Type >	BlockMultiVectorPtr_Type

typedef FE< SC, LO, GO, NO >	FEFac_Type

typedef Teuchos::RCP< FEFac_Type >	FEFacPtr_Type

typedef boost::function< void(double x, double res, double t, const double *parameters)>	BC_func_Type

Public Member Functions
void	addBC (BC_func_Type funcBC, int flag, int block, const DomainPtr_Type &domain, std::string type, int dofs)
	Adding Boundary Condition.

void	addBC (BC_func_Type funcBC, int flag, int block, const DomainPtr_Type &domain, std::string type, int dofs, vec_dbl_Type &parameter_vec)
	Adding Boundary Condition with extra parameters.

void	addBC (BC_func_Type funcBC, int flag, int block, const DomainPtr_Type &domain, std::string type, int dofs, vec_dbl_Type &parameter_vec, MultiVectorConstPtr_Type &externalSol)
	Adding Boundary Condition with extra parameters and vector values (i.e. when the inflow of a region is computed)

void	set (const BlockMatrixPtr_Type &blockMatrix, const BlockMultiVectorPtr_Type &b, double t=0.) const
	Setting bundary condtions to problem.

void	setRHS (const BlockMultiVectorPtr_Type &blockMV, double t=0.) const
	Setting boundary conditions to (block)vector.

void	setBCMinusVector (const BlockMultiVectorPtr_Type &outBlockMV, const BlockMultiVectorPtr_Type &substractBlockMV, double t=0.) const

void	setVectorMinusBC (const BlockMultiVectorPtr_Type &outBlockMV, const BlockMultiVectorPtr_Type &substractBlockMV, double t=0.) const

void	setDirichletBoundaryFromExternal (Teuchos::ArrayRCP< SC > &values, LO index, int loc, double time, std::string type, Teuchos::ArrayRCP< SC > valuesSubstract=Teuchos::null) const

void	setAllDirichletZero (const BlockMultiVectorPtr_Type &blockMV) const

void	setSystem (const BlockMatrixPtr_Type &blockMatrix) const
	Set boundary conditions to system.

void	setDirichletBC (const MatrixPtr_Type &matrix, int loc, int blockRow, bool isDiagonalBlock) const

void	setLocalRowOne (const MatrixPtr_Type &matrix, LO localNode, UN dofsPerNode, int loc) const

void	setLocalRowZero (const MatrixPtr_Type &matrix, LO localNode, UN dofsPerNode, int loc) const

bool	blockHasDirichletBC (int block) const

bool	blockHasDirichletBC (int block, int &loc) const

bool	findFlag (LO flag, int block, int &loc) const

int	dofsPerNodeAtBlock (int block)

Detailed Description

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>
class FEDD::BCBuilder< SC, LO, GO, NO >

This class is responsible for setting the boundary conditions into the system and rhs.

Template Parameters

SC	The scalar type. So far, this is always double, but having it as a template parameter would allow flexibily, e.g., for using complex instead
LO	The local ordinal type. The is the index type for local indices
GO	The global ordinal type. The is the index type for global indices
NO	The Kokkos Node type. This would allow for performance portibility when using Kokkos. Currently, this is not used.

When we define our test/example we add boundary conditions to the BCBuilder. These conditions match the geometry flags to boundary functions (i.e. zeroDirchlet).

Then, when 'setSystem()' or 'setRhs()' is called, the boundary conditiones are set according to the set boundary conditions.

These boundary conditions are limited to dirichlet boundary conditions.

BC Builder contains all boundary condition information of current problem.

Member Function Documentation

◆ addBC() [1/3]

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::addBC	(	BC_func_Type	funcBC,
		int	flag,
		int	block,
		const DomainPtr_Type &	domain,
		std::string	type,
		int	dofs )

Adding Boundary Condition.

Parameters

funcBC	function representing bc
flag	flag corresponding to the funcBC
block	diagonal block corresponding to the bc (i.e. in block systems like stokes equation)
domain	finite element space correspong to block
type	of bc. Dirichlet, Dirichlet_X ...
dofs	degrees of freedom of bc (i.e. 3 for a vector valued problem)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addBC() [2/3]

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::addBC	(	BC_func_Type	funcBC,
		int	flag,
		int	block,
		const DomainPtr_Type &	domain,
		std::string	type,
		int	dofs,
		vec_dbl_Type &	parameter_vec )

Adding Boundary Condition with extra parameters.

Parameters

funcBC	function representing bc
flag	flag corresponding to the funcBC
block	diagonal block corresponding to the bc (i.e. in block systems like stokes equation)
domain	finite element space correspong to block
type	of bc. Dirichlet, Dirichlet_X ...
dofs	degrees of freedom of bc (i.e. 3 for a vector valued problem)
parameter_vec	vector containing different parameters for bc

Here is the call graph for this function:

◆ addBC() [3/3]

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::addBC	(	BC_func_Type	funcBC,
		int	flag,
		int	block,
		const DomainPtr_Type &	domain,
		std::string	type,
		int	dofs,
		vec_dbl_Type &	parameter_vec,
		MultiVectorConstPtr_Type &	externalSol )

Adding Boundary Condition with extra parameters and vector values (i.e. when the inflow of a region is computed)

Parameters

funcBC	function representing bc
flag	flag corresponding to the funcBC
block	diagonal block corresponding to the bc (i.e. in block systems like stokes equation)
domain	finite element space correspong to block
type	of bc. Dirichlet, Dirichlet_X ...
dofs	degrees of freedom of bc (i.e. 3 for a vector valued problem)
parameter_vec	vector containing different parameters for bc
externalSol	vector with values for bc

Here is the call graph for this function:

◆ blockHasDirichletBC() [1/2]

template<class SC, class LO, class GO, class NO>

bool FEDD::BCBuilder< SC, LO, GO, NO >::blockHasDirichletBC ( int block ) const

Parameters

block

Returns

Here is the call graph for this function:

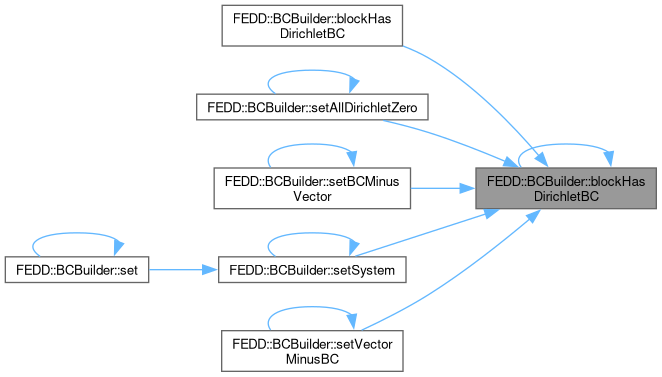

Here is the caller graph for this function:

◆ blockHasDirichletBC() [2/2]

template<class SC, class LO, class GO, class NO>

bool FEDD::BCBuilder< SC, LO, GO, NO >::blockHasDirichletBC	(	int	block,
		int &	loc ) const

Parameters

block
loc

Returns

Here is the call graph for this function:

◆ dofsPerNodeAtBlock()

template<class SC, class LO, class GO, class NO>

int FEDD::BCBuilder< SC, LO, GO, NO >::dofsPerNodeAtBlock ( int block )

Parameters

block

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findFlag()

template<class SC, class LO, class GO, class NO>

bool FEDD::BCBuilder< SC, LO, GO, NO >::findFlag	(	LO	flag,
		int	block,
		int &	loc ) const

Parameters

flag
block
loc

Returns

Here is the call graph for this function:

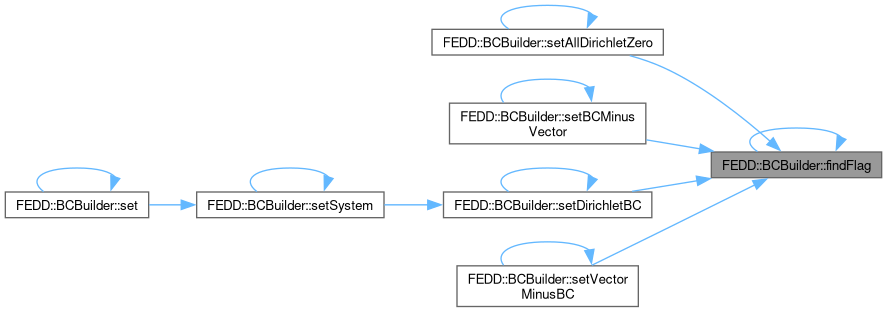

Here is the caller graph for this function:

◆ set()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::set	(	const BlockMatrixPtr_Type &	blockMatrix,
		const BlockMultiVectorPtr_Type &	b,
		double	t = 0. ) const

Setting bundary condtions to problem.

Parameters

blockMatrix	System matrix
b	rhs vector
t

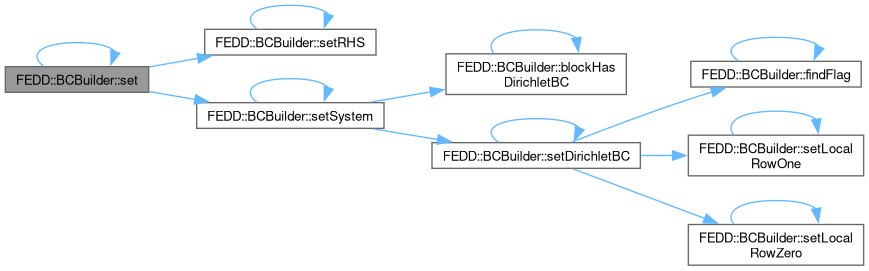

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setAllDirichletZero()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setAllDirichletZero ( const BlockMultiVectorPtr_Type & blockMV ) const

Parameters

blockMV

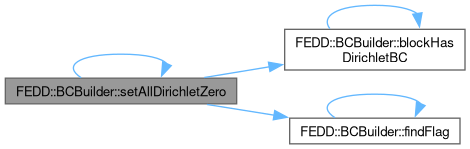

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBCMinusVector()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setBCMinusVector	(	const BlockMultiVectorPtr_Type &	outBlockMV,
		const BlockMultiVectorPtr_Type &	substractBlockMV,
		double	t = 0. ) const

Parameters

outBlockMV
substractBlockMV
t

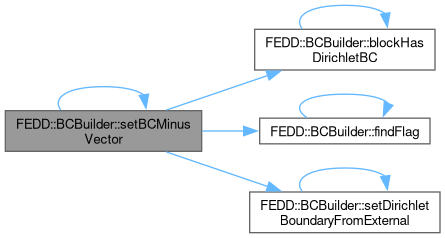

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDirichletBC()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setDirichletBC	(	const MatrixPtr_Type &	matrix,
		int	loc,
		int	blockRow,
		bool	isDiagonalBlock ) const

Parameters

matrix
loc
blockRow
isDiagonalBlock

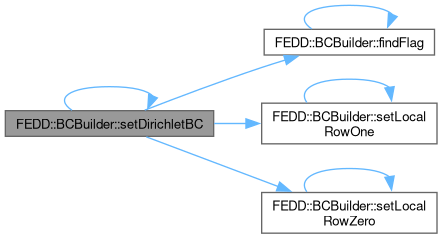

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDirichletBoundaryFromExternal()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setDirichletBoundaryFromExternal	(	Teuchos::ArrayRCP< SC > &	values,
		LO	index,
		int	loc,
		double	time,
		std::string	type,
		Teuchos::ArrayRCP< SC >	valuesSubstract = Teuchos::null ) const

Parameters

values
index
loc
time
type
valuesSubstract

Here is the call graph for this function:

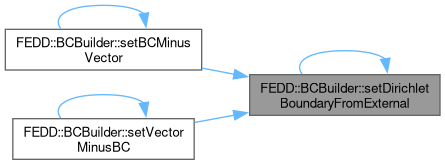

Here is the caller graph for this function:

◆ setLocalRowOne()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setLocalRowOne	(	const MatrixPtr_Type &	matrix,
		LO	localNode,
		UN	dofsPerNode,
		int	loc ) const

Parameters

matrix
localNode
dofsPerNode
loc

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLocalRowZero()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setLocalRowZero	(	const MatrixPtr_Type &	matrix,
		LO	localNode,
		UN	dofsPerNode,
		int	loc ) const

Parameters

matrix
localNode
dofsPerNode
loc

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setRHS()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setRHS	(	const BlockMultiVectorPtr_Type &	blockMV,
		double	t = 0. ) const

Setting boundary conditions to (block)vector.

Parameters

blockMV	vector
t

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSystem()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setSystem ( const BlockMatrixPtr_Type & blockMatrix ) const

Set boundary conditions to system.

Parameters

blockMatrix

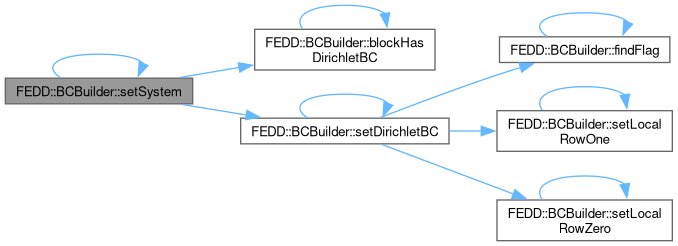

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setVectorMinusBC()

template<class SC, class LO, class GO, class NO>

void FEDD::BCBuilder< SC, LO, GO, NO >::setVectorMinusBC	(	const BlockMultiVectorPtr_Type &	outBlockMV,
		const BlockMultiVectorPtr_Type &	substractBlockMV,
		double	t = 0. ) const

Parameters

outBlockMV
substractBlockMV
t

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

feddlib/core/General/BCBuilder_decl.hpp
feddlib/core/General/BCBuilder_def.hpp
