FEDD::MeshPartitioner< SC, LO, GO, NO > Class Template Reference

Public Types
typedef Domain< SC, LO, GO, NO >	Domain_Type
typedef Domain_Type::DomainPtr_Type	DomainPtr_Type
typedef Domain_Type::CommConstPtr_Type	CommConstPtr_Type
typedef std::vector< DomainPtr_Type >	DomainPtrArray_Type
typedef Domain_Type::MeshUnstr_Type	MeshUnstr_Type
typedef Domain_Type::MeshUnstrPtr_Type	MeshUnstrPtr_Type
typedef Domain_Type::MapConstPtr_Type	MapConstPtr_Type
typedef Elements	Elements_Type
typedef Teuchos::RCP< Elements_Type >	ElementsPtr_Type
typedef EdgeElements	EdgeElements_Type
typedef Teuchos::RCP< EdgeElements_Type >	EdgeElementsPtr_Type
typedef std::vector< idx_t >	vec_idx_Type

Public Member Functions
	MeshPartitioner (DomainPtrArray_Type domains, ParameterListPtr_Type pL, std::string feType, int dimension)
void	readAndPartition (int volumeID=10)
	Main Function of partitioner. Called with volume ID in order to set in case it is not equal to ten. Always make sure the volumeID corresponds to the highest given flag.
void	setEdgesToSurfaces (int meshNumber)
	Only used in 3D to set the edges as subelements to surfaces.
void	setSurfacesToElements (int meshNumber)
	Setting surfaces, i.e. edges in 2D and triangles in 3D, as subelements to the corresponding elements.
void	partitionMesh (MeshUnstrPtr_Type &mesh, int meshNumber)
	Main function, that reads and partions and distributes the mesh to the different processors. Here all necessary maps and lists are created.
void	buildEdgeListParallel (MeshUnstrPtr_Type mesh, ElementsPtr_Type elementsGlobal)
	Making the edge list parallel.
void	buildEdgeList (MeshUnstrPtr_Type mesh, ElementsPtr_Type &elementsGlobal)
	Building the edge list.
void	setLocalEdgeIndices (vec2D_int_Type &localEdgeIndices)
	Setting surfaces, i.e. edges in 2D and triangles in 3D, as subelements to the corresponding elements.
void	determineRanks ()
void	determineRanksFromNumberRanks (vec_int_Type &ranks)
void	determineRanksFromFractions (vec_int_Type &fractions)
void	makeContinuousElements (ElementsPtr_Type elements, vec_idx_Type &eind_vec, vec_idx_Type &eptr_vec)
void	findAndSetSurfacesPartitioned (vec2D_int_Type &surfElements_vec, vec2D_int_Type &surfElements_vec_unsorted, vec_int_Type &surfElementsFlag_vec, FiniteElement &element, vec2D_int_Type &permutation, vec_GO_Type &linearSurfacePartitionOffset, int globalElID)
	Finding the surfaces corresponding to a specfic element and then setting subelements.
void	setLocalSurfaceEdgeIndices (vec2D_int_Type &localSurfaceEdgeIndices, int edgesElementOrder)
	Setting local IDs to the edges in 3D case with respect to the local numbering of elements.
void	findAndSetSurfaceEdges (vec2D_int_Type &edgeElements_vec, vec_int_Type &edgeElementsFlag_vec, FiniteElement &element, vec2D_int_Type &permutation, MapConstPtr_Type mapRepeated)
	Only relevant in 3D. Finding the edges corresponding to the specfic element and then setting as subsubelement.
int	searchInSurfaces (vec2D_int_Type &surfaces, vec_int_Type searchSurface)
	Searching on particular surface in a surface list.
void	setLocalSurfaceIndices (vec2D_int_Type &localSurfaceIndices, int surfaceElementOrder)

Member Function Documentation

findAndSetSurfacesPartitioned()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshPartitioner< SC, LO, GO, NO >::findAndSetSurfacesPartitioned	(	vec2D_int_Type &	surfElements_vec,
		vec2D_int_Type &	surfElements_vec_unsorted,
		vec_int_Type &	surfElementsFlag_vec,
		FiniteElement &	element,
		vec2D_int_Type &	permutation,
		vec_GO_Type &	linearSurfacePartitionOffset,
		int	globalElID )

Finding the surfaces corresponding to a specfic element and then setting subelements.

Function that sets edges (2D) or surfaces(3D) to the corresponding element. It determines for the specific element 'element' if it has a surface with a non volumeflag that can be set as subelement

Here is the call graph for this function:

Here is the caller graph for this function:

setEdgesToSurfaces()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshPartitioner< SC, LO, GO, NO >::setEdgesToSurfaces

(

int

meshNumber

)

Only used in 3D to set the edges as subelements to surfaces.

Function that (addionally) adds edges as subelements in the 3D case. This is relevant when the .mesh file also contains edge information in 3D. Otherwise edges are not set as subelements in 3D.

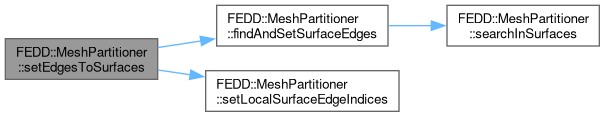

Here is the call graph for this function:

setSurfacesToElements()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshPartitioner< SC, LO, GO, NO >::setSurfacesToElements

(

int

meshNumber

)

Setting surfaces, i.e. edges in 2D and triangles in 3D, as subelements to the corresponding elements.

Adding surfaces as subelements to the corresponding elements. This adresses surfaces in 3D or edges in 2D. If in the 3D case edges are also part of the .mesh file, they will be added as subelements later.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• feddlib/core/Mesh/MeshPartitioner_decl.hpp
• feddlib/core/Mesh/MeshPartitioner_def.hpp
