Inheritance diagram for FEDD::MeshUnstructured< SC, LO, GO, NO >:

Public Types
typedef Mesh< SC, LO, GO, NO >	Mesh_Type

typedef Teuchos::RCP< MeshUnstructured< SC, LO, GO, NO > >	MeshUnstrPtr_Type

typedef Teuchos::RCP< Mesh_Type >	MeshPtr_Type

typedef std::vector< MeshUnstrPtr_Type >	MeshUnstrPtrArray_Type

typedef Mesh_Type::CommPtr_Type	CommPtr_Type

typedef Mesh_Type::CommConstPtr_Type	CommConstPtr_Type

typedef Mesh_Type::Elements_Type	Elements_Type

typedef Mesh_Type::ElementsPtr_Type	ElementsPtr_Type

typedef EdgeElements	EdgeElements_Type

typedef Teuchos::RCP< EdgeElements_Type >	EdgeElementsPtr_Type

typedef SurfaceElements	SurfaceElements_Type

typedef Teuchos::RCP< SurfaceElements_Type >	SurfaceElementsPtr_Type

typedef MeshInterface< SC, LO, GO, NO >	MeshInterface_Type

typedef Teuchos::RCP< MeshInterface_Type >	MeshInterfacePtr_Type

typedef Map< LO, GO, NO >	Map_Type

typedef Map_Type::MapPtr_Type	MapPtr_Type

typedef Map_Type::MapConstPtr_Type	MapConstPtr_Type

typedef Teuchos::OrdinalTraits< LO >	OTLO

typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef MultiVector< LO, LO, GO, NO >	MultiVectorLO_Type

typedef Teuchos::RCP< MultiVectorLO_Type >	MultiVectorLOPtr_Type

typedef Teuchos::RCP< const MultiVector_Type >	MultiVectorPtrConst_Type

typedef Matrix< SC, LO, GO, NO >	Matrix_Type

typedef Teuchos::RCP< Matrix_Type >	MatrixPtr_Type

Public Types inherited from FEDD::Mesh< default_sc, default_lo, default_go, default_no >
typedef Elements	Elements_Type

typedef FiniteElement	FiniteElement_Type

typedef Teuchos::RCP< FiniteElement_Type >	FiniteElementPtr_Type

typedef Teuchos::RCP< Elements_Type >	ElementsPtr_Type

typedef Teuchos::RCP< Mesh >	Mesh_ptr_Type

typedef Teuchos::RCP< Teuchos::Comm< int > >	CommPtr_Type

typedef Teuchos::RCP< const Teuchos::Comm< int > >	CommConstPtr_Type

typedef const CommConstPtr_Type	CommConstPtrConst_Type

typedef Map< default_lo, default_go, default_no >	Map_Type

typedef Teuchos::RCP< Map_Type >	MapPtr_Type

typedef Teuchos::RCP< const Map_Type >	MapConstPtr_Type

typedef Teuchos::RCP< const Map_Type >	MapConstPtrConst_Type

typedef MultiVector< default_sc, default_lo, default_go, default_no >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef AABBTree< default_sc, default_lo, default_go, default_no >	AABBTree_Type

typedef Teuchos::RCP< AABBTree_Type >	AABBTreePtr_Type

Public Member Functions
	MeshUnstructured (CommConstPtr_Type comm, int volumeID=10)

void	buildP2ofP1MeshEdge (MeshUnstrPtr_Type meshP1)
	Function to build a P2 mesh of a P1 mesh.

void	setP2SurfaceElements (MeshUnstrPtr_Type meshP1)
	Adding the correct surface subelement to the new P2 Elements based on the P1 subelements.

void	setSurfaceP2 (FiniteElement &feP2, const FiniteElement &surfFeP1, const vec2D_int_Type &surfacePermutation, int dim)
	Helper function for setP2SurfaceElements. Adds the correct nodes to the meshP1 subelements. Based on sorted Elements.

void	addSurfaceP2Nodes (FiniteElement &feP2, const FiniteElement &surfFeP1, const vec2D_int_Type &surfacePermutation, int dim)
	Helper function for setP2SurfaceElements. Adds the correct nodes to the meshP1 subelements. Based on unsorted elements. Different approach than above. Based on edge Midpoints.

vec_int_Type	reorderP2SurfaceIndices (vec_int_Type &additionalP2IDs, vec_int_Type &index, bool track=false)
	Depending on the sorting of P1 surface nodes we have to adjust the new ordering of P2 edge midpoints for surfaces in 3D.

void	getLocalSurfaceIndices (vec2D_int_Type &surfacePermutation, int surfaceElementOrder)
	Get local Surface Indices.

void	getEdgeCombinations (vec2D_int_Type &edgeCombinations)
	Get edge combinations.

void	determinePositionInElementP2 (vec_int_Type &positions, vec_GO_Type &elementsGlobalOfEdge, LO p1ID, LO p2ID, MeshUnstrPtr_Type meshP1)
	Determine position of new P2 node in element, as all elements should follow the same structure.

int	determineFlagP2 (FiniteElement &fe, LO p1ID, LO p2ID, vec2D_int_Type &permutation)
	Essentially determine flag of an edge. Thus determine P2 Flag for building P2 mesh.

int	determineFlagP2 (LO p1ID, LO p2ID, LO localEdgeID, vec2D_LO_Type &markedPoint)
	Essentially determine flag of an edge. Thus determine P2 Flag for building P2 mesh. Longer version of other determineFlagP2 function. Also informs whether flag could be found or not (not always the case in parallel)

void	getTriangles (int vertex1ID, int vertex2ID, vec_int_Type &vertices3ID)

SurfaceElementsPtr_Type	getSurfaceTriangleElements ()

void	findSurfaces (const vec_int_Type &elementNodeList, vec_int_Type numbering, vec2D_int_Type &localSurfaceNodeList_vec, vec_int_Type &locSurfaces, bool critical=false)

void	findEdges (const vec_int_Type &elementNodeList, vec_int_Type numbering, vec2D_int_Type &localEdgeNodeList_vec, vec_int_Type &locEdges)
	Determine which edges belong to an element.

MeshInterfacePtr_Type	getMeshInterface ()
	Get mesh interface.

void	buildMeshInterfaceParallelAndDistance (MeshUnstrPtr_Type mesh, vec_int_Type flag_vec, vec_dbl_ptr_Type &distancesToInterface)

void	partitionInterface ()

void	setEdgeElements (EdgeElementsPtr_Type edgeElements)
	setEdgeElements with external edges

EdgeElementsPtr_Type	getEdgeElements ()
	Get EdgeElements.

ElementsPtr_Type	getSurfaceEdgeElements ()
	Get SurfaceEdgeElements. Edges as only surface elements (i.e. when reading .mesh file). Used in mesh partitioner.

void	readMeshSize ()
	Reading mesh size.

void	readMeshEntity (std::string entityType)
	Reading the .mesh files entities.

void	setMeshFileName (std::string meshFileName, std::string delimiter)
	Set the .mesh file name.

int	getNumGlobalNodes ()
	Get global number of nodes.

void	assignEdgeFlags ()
	Assigning flags to all edges.

void	buildEdgeMap ()
	Building an edgemap from scratch when edges are already distributed parallel.

void	exportMesh (MapConstPtr_Type mapUnique, MapConstPtr_Type mapRep, bool exportEdges=false, bool exportSurface=false, std::string meshName="export.mesh")
	Exporting Mesh as .mesh file. For most detailed export we also write surfaces and edges. This can be useful/necessary.

void	exportNodeFlags ()

void	exportElementFlags ()

Public Member Functions inherited from FEDD::Mesh< default_sc, default_lo, default_go, default_no >
	Mesh (CommConstPtrConst_Type &comm)

void	deleteData ()

void	setParameterList (ParameterListPtr_Type &pL)
	Setting input parameterlist to be parameterlist here.

ParameterListConstPtr_Type	getParameterList () const
	Getter for paramaeterlist that is set here.

vec_int_ptr_Type	getElementsFlag () const
	Getter for element flags.

MapConstPtr_Type	getMapUnique () const
	Getter for unique node map.

MapConstPtr_Type	getMapRepeated () const
	Getter for repeated node mal.

MapConstPtr_Type	getElementMap () const
	Getter for element map.

MapConstPtr_Type	getEdgeMap ()
	Getter for edge map.

vec2D_dbl_ptr_Type	getPointsRepeated () const
	getter for list of repeated points with x,y,z coordinates in each row

vec2D_dbl_ptr_Type	getPointsUnique () const
	getter for list of unique points with x,y,z coordinates in each row

vec_int_ptr_Type	getBCFlagRepeated () const
	Getter for flags corresponting to repeated points.

vec_int_ptr_Type	getBCFlagUnique () const
	Getter for flags corresponting to unique points.

ElementsPtr_Type	getElementsC ()
	Returns element list as c-object.

ElementsPtr_Type	getSurfaceElements ()
	Getter for surface elements. Probably set in mesh partitioner. They are generally the dim-1 surface elements.

int	getDimension ()

default_go	getNumElementsGlobal ()
	Global number of elements.

default_lo	getNumElements ()
	Local number of elements.

default_lo	getNumPoints (std::string type="Unique")
	Get local (LO) number of points either in unique or repeated version.

int	getOrderElement ()

CommConstPtrConst_Type	getComm ()
	Communicator object.

int	setStructuredMeshFlags (int flags)
	This is done in meshStructured. Maybe we should move it here or delete this.

void	setElementFlags (std::string type="")
	Something for TPM. Can be deprecated soon.

void	setReferenceConfiguration ()
	Setting current coordinates as reference configuration. Should only be called once :D.

void	moveMesh (MultiVectorPtr_Type displacementUnique, MultiVectorPtr_Type displacementRepeated)
	Moving mesh according to displacement based on reference configuration.

int	getSurfaceElementOrder ()
	Get SurfaceElement order.

int	getEdgeElementOrder ()
	Get EdgeElement order.

void	create_AABBTree ()

vec_int_ptr_Type	findElemsForPoints (vec2D_dbl_ptr_Type query_points)

vec_dbl_Type	getBaryCoords (vec_dbl_Type point, int element)

bool	isPointInElem (vec_dbl_Type point, int element)

tuple_intint_Type	getRankRange () const

void	deleteSurfaceElements ()
	Deleting surface elements, called after reading input mesh.

void	correctNormalDirections ()
	Correcting the normal direction of all surface normals set as subelements of volume elements to be outward normals.

void	correctElementOrientation ()
	Correct the element orientation of all elements to have positive volume / det when doint transformation.

vec2D_int_ptr_Type	getElements ()
	Returns elements as a vector type contrary to the C-object list.

Public Attributes
MeshInterfacePtr_Type	meshInterface_

int	volumeID_

EdgeElementsPtr_Type	edgeElements_

ElementsPtr_Type	surfaceEdgeElements_

SurfaceElementsPtr_Type	surfaceTriangleElements_

std::string	meshFileName_

std::string	delimiter_

int	numSurfaces_

int	numEdges_

int	numNodes_

Public Attributes inherited from FEDD::Mesh< default_sc, default_lo, default_go, default_no >
int	dim_

long long	numElementsGlob_

std::string	FEType_

MapPtr_Type	mapUnique_

MapPtr_Type	mapRepeated_

vec2D_dbl_ptr_Type	pointsRep_

vec2D_dbl_ptr_Type	pointsUni_

vec_int_ptr_Type	bcFlagRep_

vec_int_ptr_Type	bcFlagUni_

ElementsPtr_Type	surfaceElements_

ElementsPtr_Type	elementsC_

MapPtr_Type	elementMap_

MapPtr_Type	edgeMap_

CommConstPtrConst_Type	comm_

vec2D_int_ptr_Type	elementsVec_

vec2D_dbl_ptr_Type	pointsRepRef_

vec2D_dbl_ptr_Type	pointsUniRef_

int	elementOrder_

int	surfaceElementOrder_

int	edgesElementOrder_

AABBTreePtr_Type	AABBTree_

tuple_intint_Type	rankRange_

Member Function Documentation

◆ addSurfaceP2Nodes()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::addSurfaceP2Nodes	(	FiniteElement &	feP2,
		const FiniteElement &	surfFeP1,
		const vec2D_int_Type &	surfacePermutation,
		int	dim )

Helper function for setP2SurfaceElements. Adds the correct nodes to the meshP1 subelements. Based on unsorted elements. Different approach than above. Based on edge Midpoints.

Parameters

[in]	feP2	P2 element
[in]	surfFeP1	P1 surface element that need new P2 nodes
[in]	surfacePermutation	Surface permutations of element
[in]	dim	Dimension

Here is the call graph for this function:

Here is the caller graph for this function:

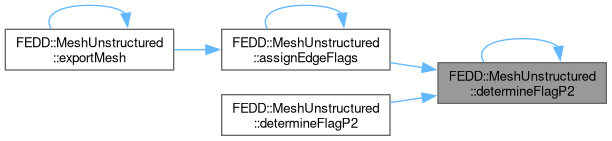

◆ assignEdgeFlags()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::assignEdgeFlags ( )

Assigning flags to all edges.

Not all edges are marked with a flag in the beginning. In order to set the correct flags to new points we assign the edge flag of the edge they originated from, similar to the function determineEdgeFlagP2, but this function uses the edgeMap.

Todo: Elaboration of Flag Assignment Process. i.e. Lowest flag is used etc.

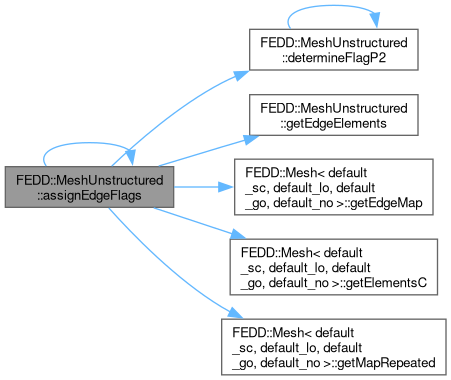

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildP2ofP1MeshEdge()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::buildP2ofP1MeshEdge ( MeshUnstrPtr_Type meshP1 )

Function to build a P2 mesh of a P1 mesh.

Parameters

[in] meshP1 The p1 mesh we use for building P2 mesh

Here is the call graph for this function:

Here is the caller graph for this function:

◆ determineFlagP2() [1/2]

template<class SC, class LO, class GO, class NO>

int FEDD::MeshUnstructured< SC, LO, GO, NO >::determineFlagP2	(	FiniteElement &	fe,
		LO	p1ID,
		LO	p2ID,
		vec2D_int_Type &	permutation )

Essentially determine flag of an edge. Thus determine P2 Flag for building P2 mesh.

Parameters

[in]	fe	Element the edge belongs to. Use to look through subelements
[in]	p1ID	Local ID of first node of edge
[in]	p2ID	Local ID of second node of edge
[in]	permutation	Edge combinations of element

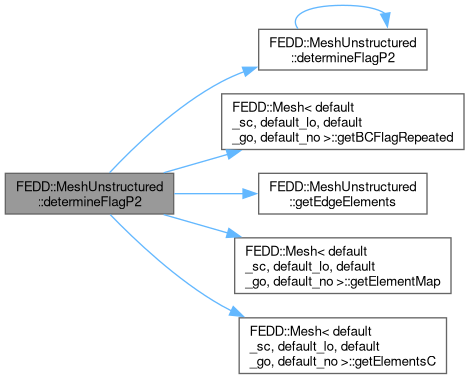

Here is the call graph for this function:

Here is the caller graph for this function:

◆ determineFlagP2() [2/2]

template<class SC, class LO, class GO, class NO>

int FEDD::MeshUnstructured< SC, LO, GO, NO >::determineFlagP2	(	LO	p1ID,
		LO	p2ID,
		LO	localEdgeID,
		vec2D_LO_Type &	markedPoint )

Essentially determine flag of an edge. Thus determine P2 Flag for building P2 mesh. Longer version of other determineFlagP2 function. Also informs whether flag could be found or not (not always the case in parallel)

Parameters

[in]	p1ID	Local ID of first node of edge
[in]	p2ID	Local ID of second node of edge
[in]	localEdgeID	LocalEdge ID of second node of edge
[in]	markedPoint	Edge information, if no flag was found

Here is the call graph for this function:

◆ determinePositionInElementP2()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::determinePositionInElementP2	(	vec_int_Type &	positions,
		vec_GO_Type &	elementsGlobalOfEdge,
		LO	p1ID,
		LO	p2ID,
		MeshUnstrPtr_Type	meshP1 )

Determine position of new P2 node in element, as all elements should follow the same structure.

Parameters

[in]	positions
[in]	elementsGlobalOfEdge	Global IDs of elements connected to the edge (numbering needs to be consistent)
[in]	p1ID	Local ID of first node of edge
[in]	p2ID	Local ID of second node of edge
[in]	meshP1	The p1 mesh we use for building P2 mesh

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportMesh()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::exportMesh	(	MapConstPtr_Type	mapUnique,
		MapConstPtr_Type	mapRep,
		bool	exportEdges = false,
		bool	exportSurface = false,
		std::string	meshName = "export.mesh" )

Exporting Mesh as .mesh file. For most detailed export we also write surfaces and edges. This can be useful/necessary.

Parameters

[in]	meshName	for export
[in]	exportEdges	wether to export edges or not
[in]	exportSurfaces	whether to export surfaces or not

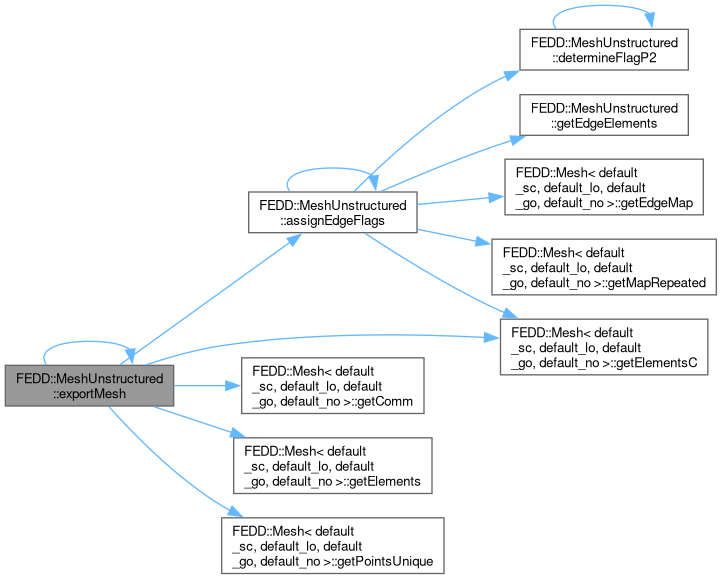

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findEdges()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::findEdges	(	const vec_int_Type &	elementNodeList,
		vec_int_Type	numbering,
		vec2D_int_Type &	localEdgeNodeList_vec,
		vec_int_Type &	locEdges )

Determine which edges belong to an element.

Parameters

[in]	elementNodeList	local node IDs of one element
[in]	numbering
[in]	localEdgeNodeList_vec	local node IDs of edges
[in]	locEdges	vector that stores the local IDs of edges belonging to element of elementNodeList

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getEdgeElements()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

EdgeElementsPtr_Type FEDD::MeshUnstructured< SC, LO, GO, NO >::getEdgeElements ( )

inline

Get EdgeElements.

Returns: edgeElements_

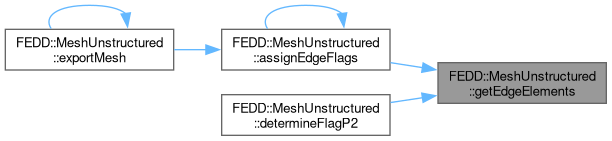

Here is the caller graph for this function:

◆ getMeshInterface()

template<class SC, class LO, class GO, class NO>

MeshUnstructured< SC, LO, GO, NO >::MeshInterfacePtr_Type FEDD::MeshUnstructured< SC, LO, GO, NO >::getMeshInterface ( )

Get mesh interface.

Returns: meshInterface_

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getNumGlobalNodes()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

int FEDD::MeshUnstructured< SC, LO, GO, NO >::getNumGlobalNodes ( )

inline

Get global number of nodes.

Returns: numNodes_

◆ getSurfaceEdgeElements()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

ElementsPtr_Type FEDD::MeshUnstructured< SC, LO, GO, NO >::getSurfaceEdgeElements ( )

inline

Get SurfaceEdgeElements. Edges as only surface elements (i.e. when reading .mesh file). Used in mesh partitioner.

Returns: surfaceEdgeElements_

◆ readMeshEntity()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::readMeshEntity ( std::string entityType )

Reading the .mesh files entities.

Parameters

[in] entityType i.e. nodes, edges, elements...

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setEdgeElements()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::setEdgeElements ( EdgeElementsPtr_Type edgeElements )

inline

setEdgeElements with external edges

Parameters

[in] edgeElements

◆ setP2SurfaceElements()

template<class SC, class LO, class GO, class NO>

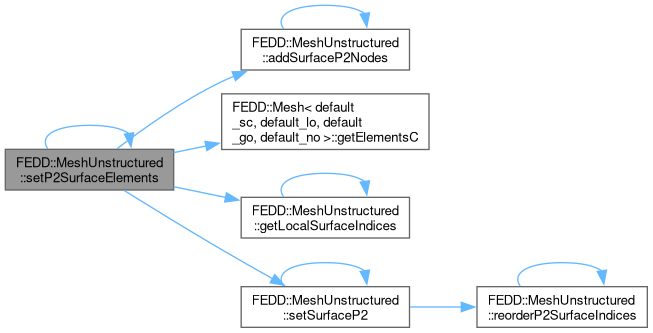

void FEDD::MeshUnstructured< SC, LO, GO, NO >::setP2SurfaceElements ( MeshUnstrPtr_Type meshP1 )

Adding the correct surface subelement to the new P2 Elements based on the P1 subelements.

Parameters

[in] meshP1 The p1 mesh we use for building P2 mesh

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSurfaceP2()

template<class SC, class LO, class GO, class NO>

void FEDD::MeshUnstructured< SC, LO, GO, NO >::setSurfaceP2	(	FiniteElement &	feP2,
		const FiniteElement &	surfFeP1,
		const vec2D_int_Type &	surfacePermutation,
		int	dim )

Helper function for setP2SurfaceElements. Adds the correct nodes to the meshP1 subelements. Based on sorted Elements.

Parameters

[in]	feP2	P2 element
[in]	surfFeP1	P1 surface element that need new P2 nodes
[in]	surfacePermutation	Surface permutations of element
[in]	dim	Dimension

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

feddlib/core/Mesh/MeshUnstructured_decl.hpp
feddlib/core/Mesh/MeshUnstructured_def.hpp

Public Types

Public Member Functions

Public Attributes

Member Function Documentation

◆ addSurfaceP2Nodes()

◆ assignEdgeFlags()

◆ buildP2ofP1MeshEdge()

◆ determineFlagP2() [1/2]

◆ determineFlagP2() [2/2]

◆ determinePositionInElementP2()

◆ exportMesh()

◆ findEdges()

◆ getEdgeElements()

◆ getMeshInterface()

◆ getNumGlobalNodes()

◆ getSurfaceEdgeElements()

◆ readMeshEntity()

◆ setEdgeElements()

◆ setP2SurfaceElements()

◆ setSurfaceP2()
